Molten Sulphur Filter
Molten Sulphur Filter

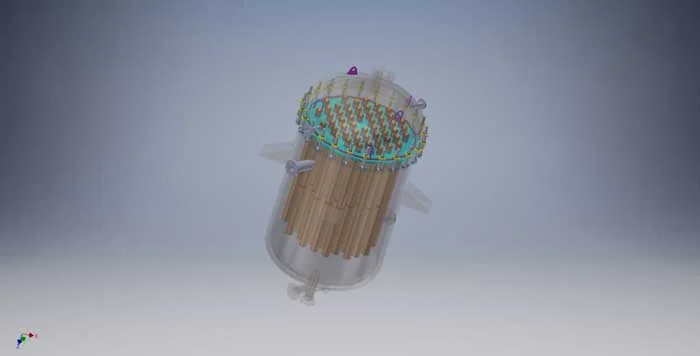

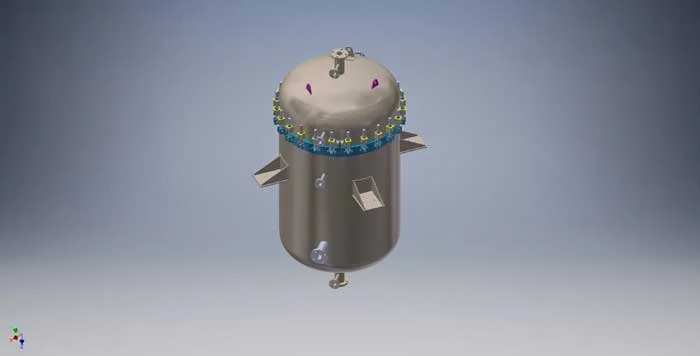

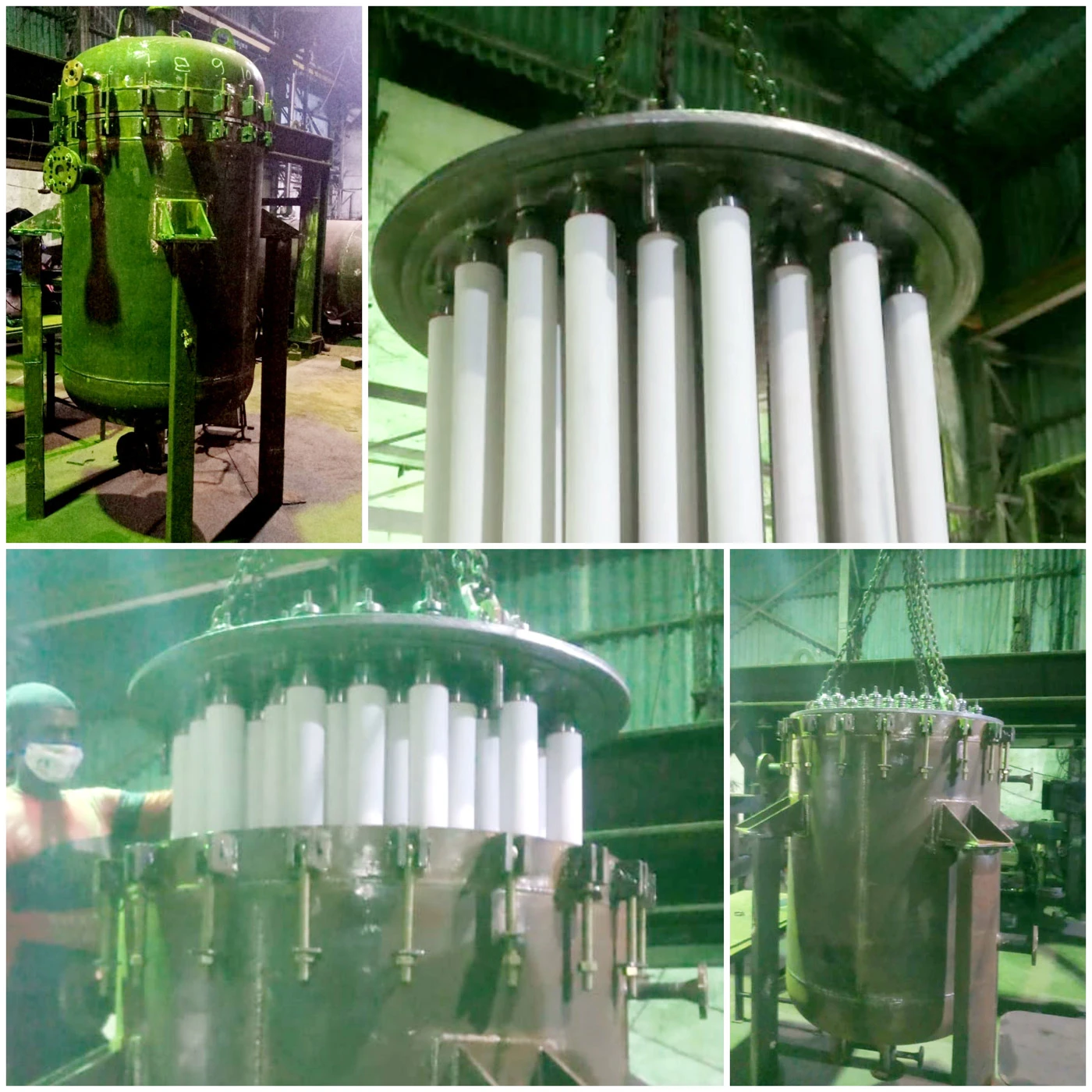

Consult a Abhishekfilter Molten Sulfur Systems Engineer to discuss your needs and determine the optimum filtration technology for your particular operation. Used in sulfur burning plants where typical high ash content levels etc.our design Abhishekfilter liquid sulphur polishing filter with ceramic elements will drastically help the Business of the sulfuric acid plant.
The primary purpose of the sulphur filter is to remove contaminants as ashes and bitumen that might plug the catalyst mass downstream in the process. The removal of solids contaminants improves the burners operations. By this it reduces the acidity of the sulphur and thereby reduces corrosion.

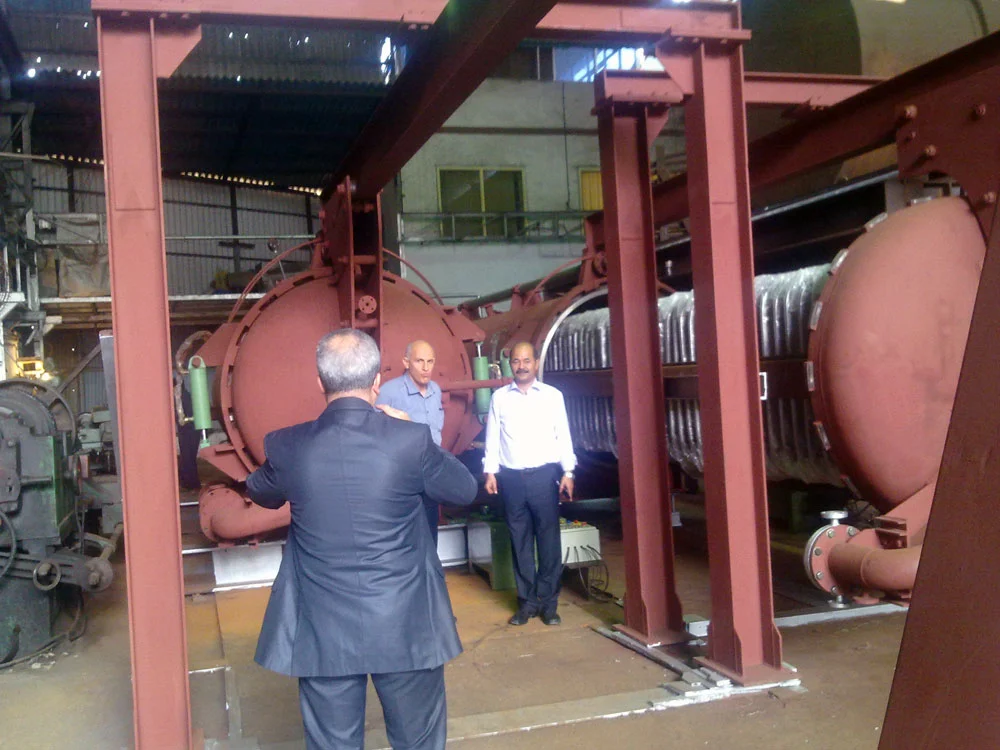

Abhishekfilter horizontal pressure leaf filter are made in carbon steel construction always.

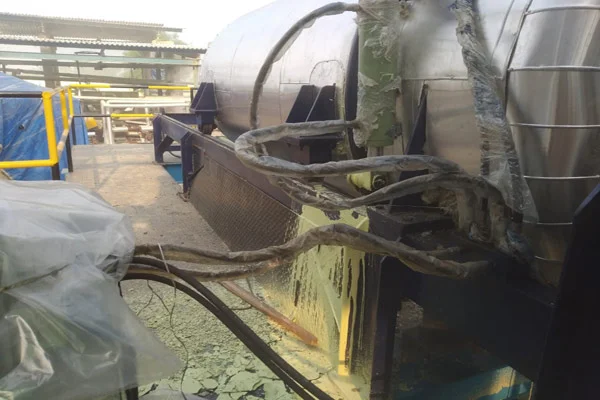

Standard pressure design is 7 bar, with 3.5 bar pressure differential across the filter plates. Steam jacket pressure design is 5.5 bar. The design temperature is 180°C. The filter should be insulated with a minimum of 50 mm of insulation.
Abhishekfilter offers horizontal pressure leaf filter for molten sulphur filtration in the following two version.

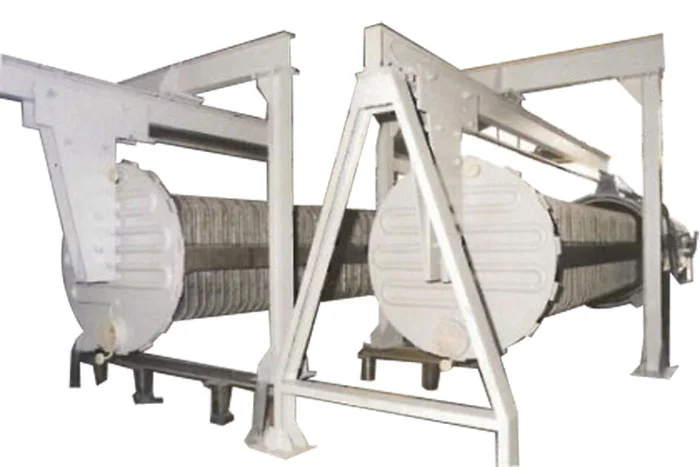

- Shell Retraction Design
- Bundle Retraction Design
Filtration area : 5m2 to 200 m2

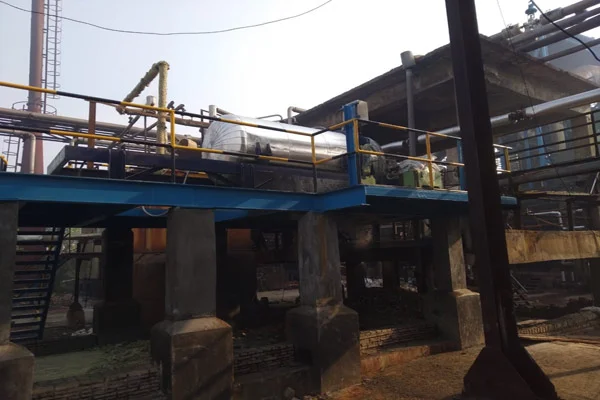

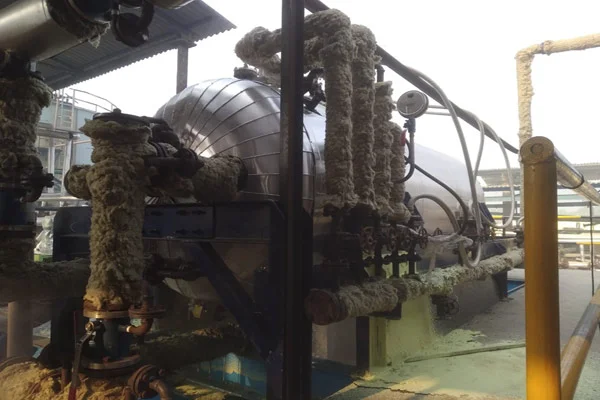

"Abhishekfilter are proud to announce the successful commissioning of a PURIC SULPHUR FILTER Horizontal Pressure Leaf Filter (HPLF) Project > 500 TPD Sulphuric Acid plant at The Dharamsi Morarji Chemical Co Ltd."
Area of Application
